Showing all 10 results

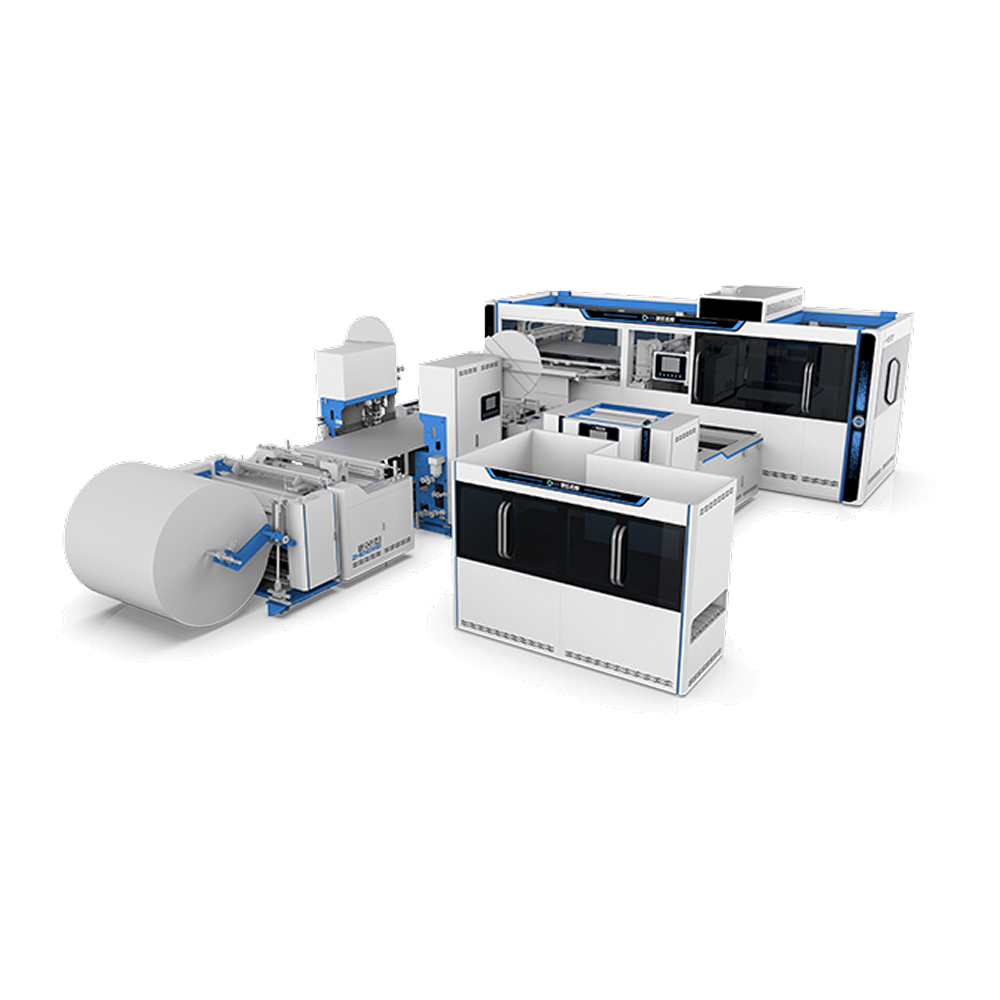

ZW-2024 is a fully automatic non-woven cooler and food delivery bag making machine. Built on four invention patents and a 32-servo motor intelligent control system, it forms a wide variety of three-dimensional bags, including food, wine, and clothing bags. Delivering efficient, space-saving operation with a waste-free material-saving design, it produces bags at 60–120 pcs/min.
-
Production Speed: 60–120 pcs/min
-
Bag Size Range: Width 110–550 mm · Gusset 70–230 mm · Height 150–450 mm
-
Material: Non-woven (laminating), bare fabric, coated composite, PP transparent film, and woven coated fabric, 55–140g
-
Control System: Intelligent 48-axis motion controller with 32 sets of servo motors and automatic deviation correction
-
Total Power: 60 KW (Average 15-20kW) · Power Supply: 380 V 3P 50/60HZ
-

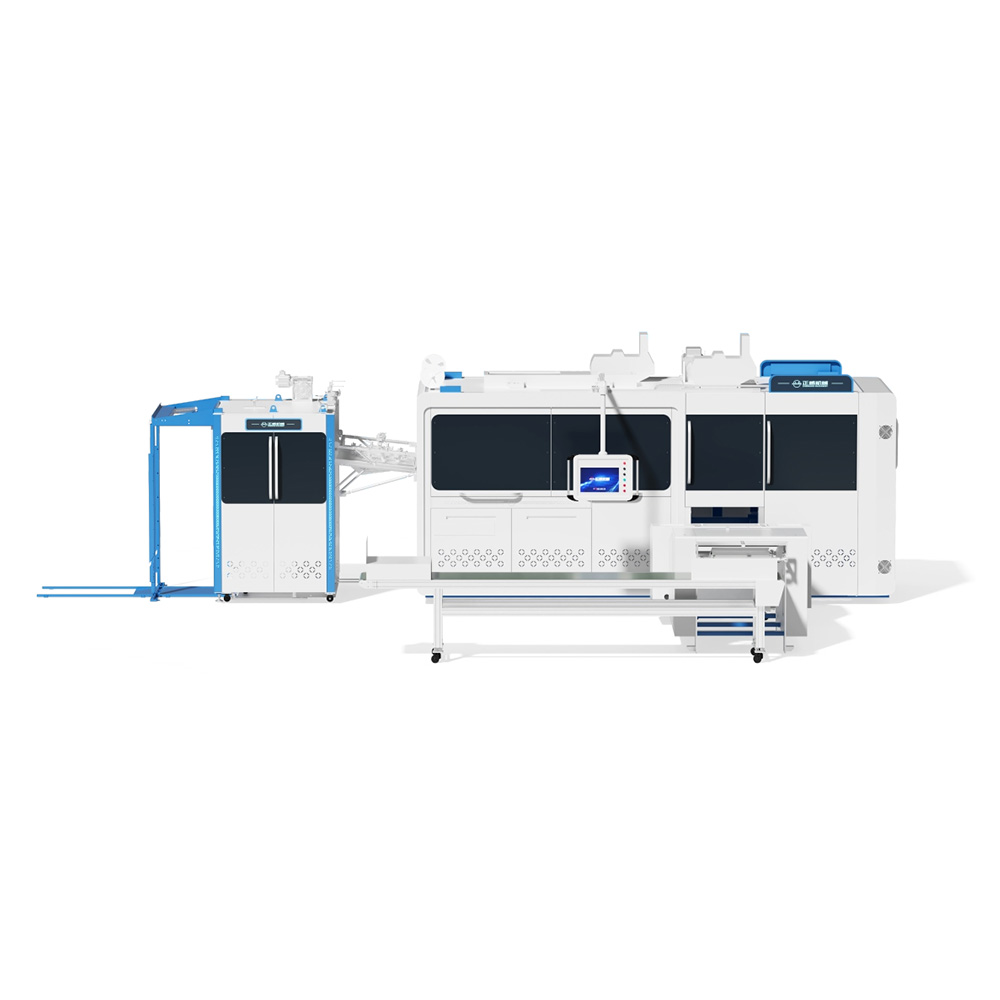

ZHENGWEI ZW-A10MINI is a fully-automatic crease-free sheet-feeding paper bag making machine designed for mini luxury packaging. Built for micro-size precision forming and equipped with a precision creasing module.
- Production Speed: 38–45 pcs/min
- Bag Size Range: Width 150–350 mm · Gusset 60–120 mm · Height 150–350 mm
- Material: White cardboard / white cow paper, 180–300 gsm (sheet-fed)
- Equipment Features: Micro-size precision forming · Precision creasing module for ultra-thin/specialty paper · Lightweight body layout for agile changeovers

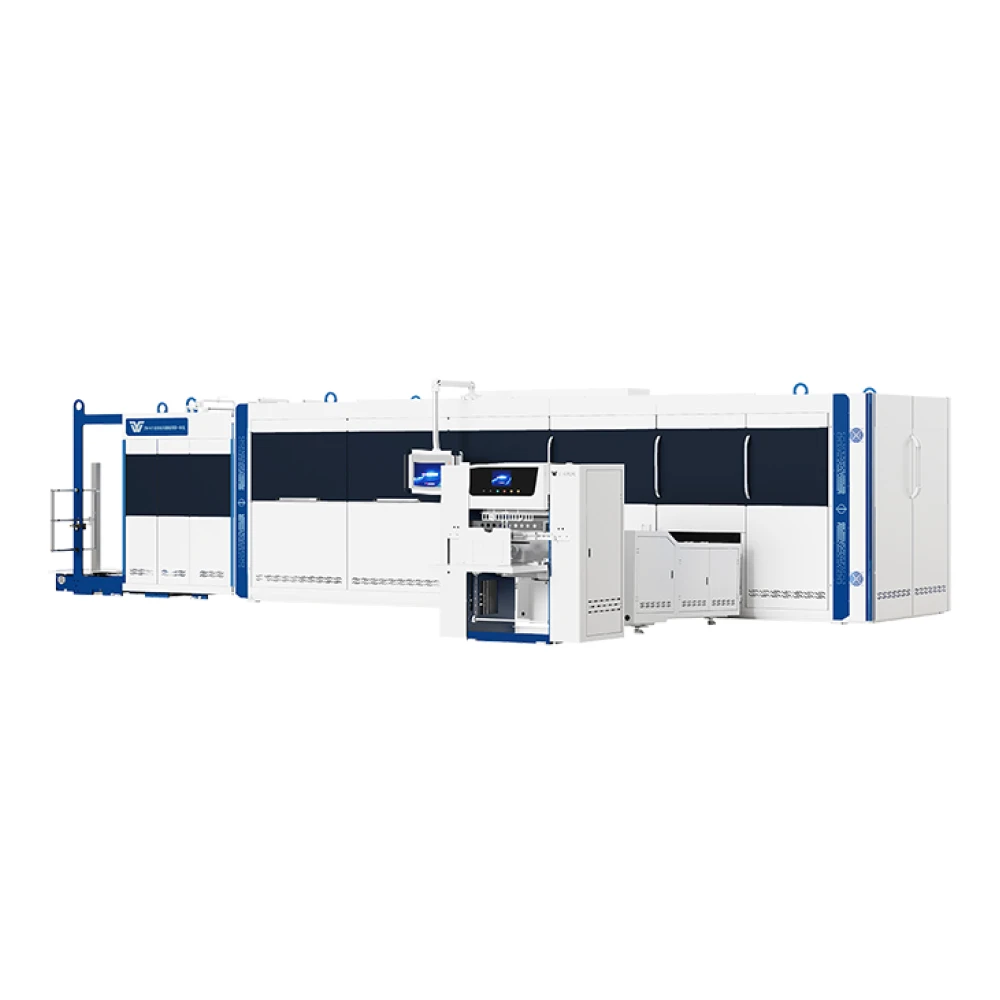

ZHENGWEI ZW-A11 is a fully-automatic crease-free sheet-feeding paper bag making machine. Built on six core patents and full-servo bus control, it forms square-bottom rope-handle bags with inline quality inspection — delivering clean, waistline-free bags at 40–45 pcs/min.
- Production Speed: 40–45 pcs/min
- Bag Size Range: Width 200–540 mm · Gusset 70–200 mm · Height 200–420 mm
- Material: White cardboard / kraft / gold & silver card, 180–300 gsm (sheet-fed)
- Control System: Full-servo bus control with inline rope quality inspection
- Total Power: 40 KW · Power Supply: 380 V

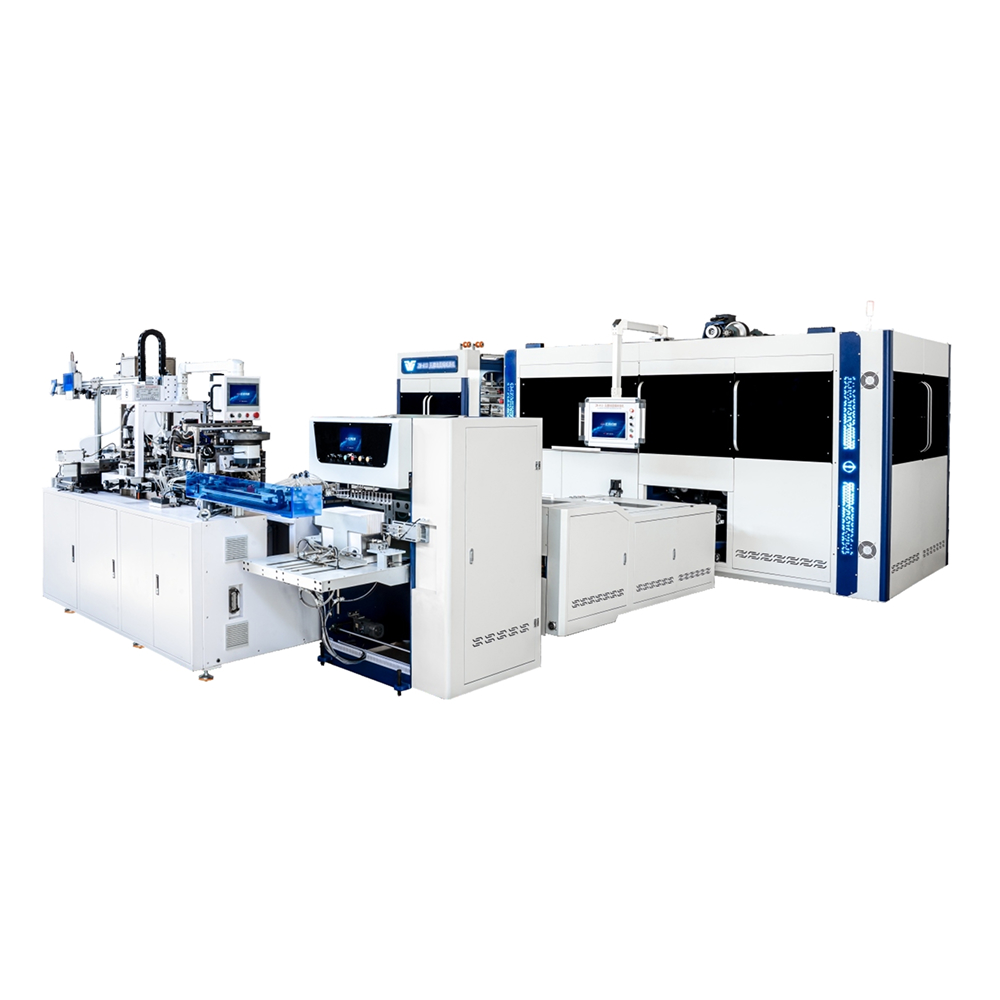

ZHENGWEI ZW-A11Pro is a multi-functional twist rope and ribbon paper bagmaking machine designed to handle both flat and round cord paper bags on a single platform without changing the die head. Built with dual-channel feeding tracks and one-touch program switching, it enables seamless switching between cord types, significantly reducing downtime and equipment expenditure while producing up to 40–45 bags/min.
- Production Speed: 40–45 pcs/min
- Bag Size Range: Width 200–540 mm · Gusset 80–200 mm · Height 200–420 mm
- Material: White cardboard / white cow paper / gold & silver cardboard (sheet-fed), 200–300 g
- Equipment Features: Dual rope-type compatibility (flat & round cord) · One-touch program
- switching on control panel · Independent dual-track material feeding channels · Single-machine coverage for all paper shopping bag types

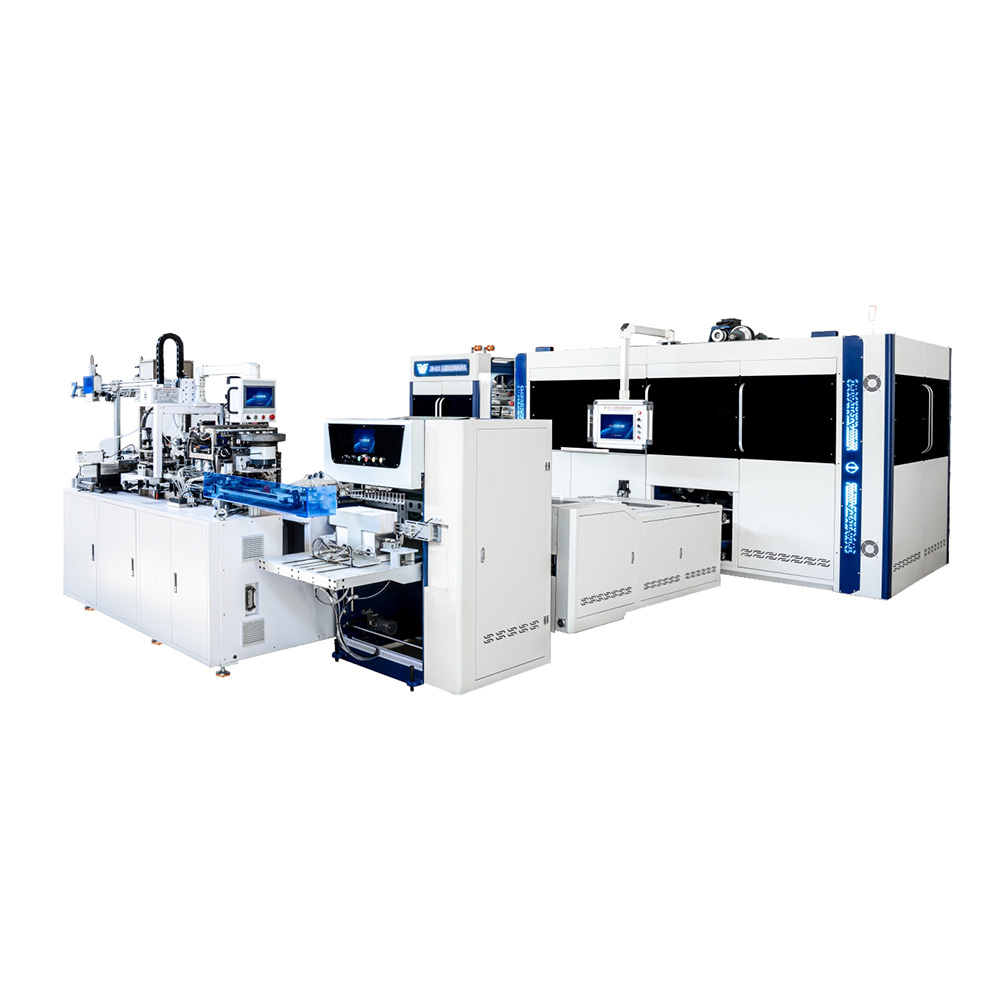

ZHENGWEI ZW-A13 is a fully-automatic crease-free round handle paper bag making machine. Equipped with automated round cord feeding, punching, and knotting modules, it produces high-end round-handle paper bags with clean, waistline-free aesthetics and precise hole positioning at 40–45 pcs/min.
-
Production Speed: 40–45 pcs/min
-
Bag Size Range: Width 200–450 mm · Gusset 80–200 mm · Height 200–420 mm
-
Material: White cardboard / white kraft paper / gold & silver cardboard, 180–300 gsm (sheet-fed)
-
Control System: Fully automated cord feeding, punching, and knotting system
-
Total Power: 25 KW · Power Supply: 380 V
-

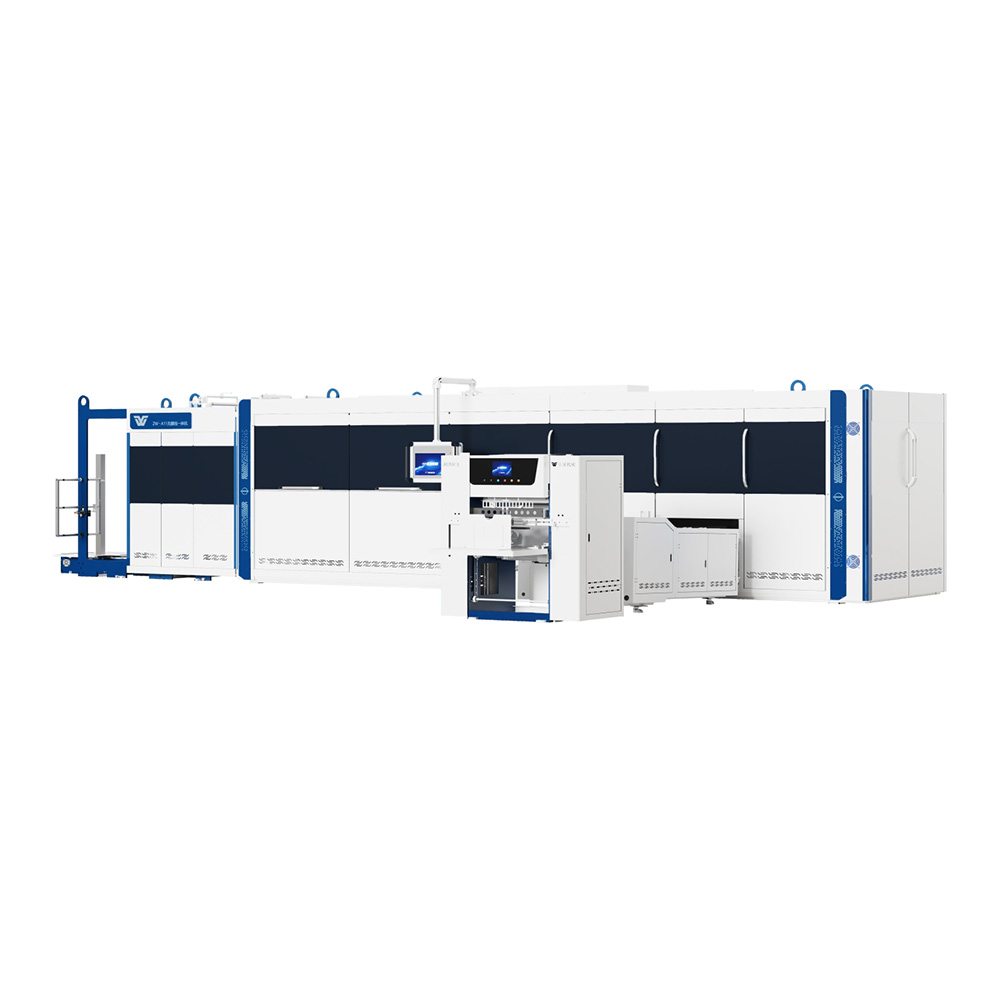

ZHENGWEI ZW-A15 MAX is a fully automatic crease-free sheet-feeding paper bag making machine MAX. Specially designed for mini luxury packaging—including jewelry, perfume bottles, and high-end watches—it seamlessly forms ultra-small to large bags with precision creasing and burr-free edges, delivering premium, waistline-free packaging.
-
Production Speed: 35–38 pcs/min
-
Bag Size Range: Width 250–600 mm · Gusset 100–250 mm · Height 220–500 mm
-
Material: White cardboard / white kraft paper / gold & silver cardboard, 200–300 gsm (sheet-fed)
-
Core Advantages: Precision creasing for specialty papers · Compact footprint for agile small-batch & mass production
-
Total Power: 40 KW · Power Supply: 380 V
-

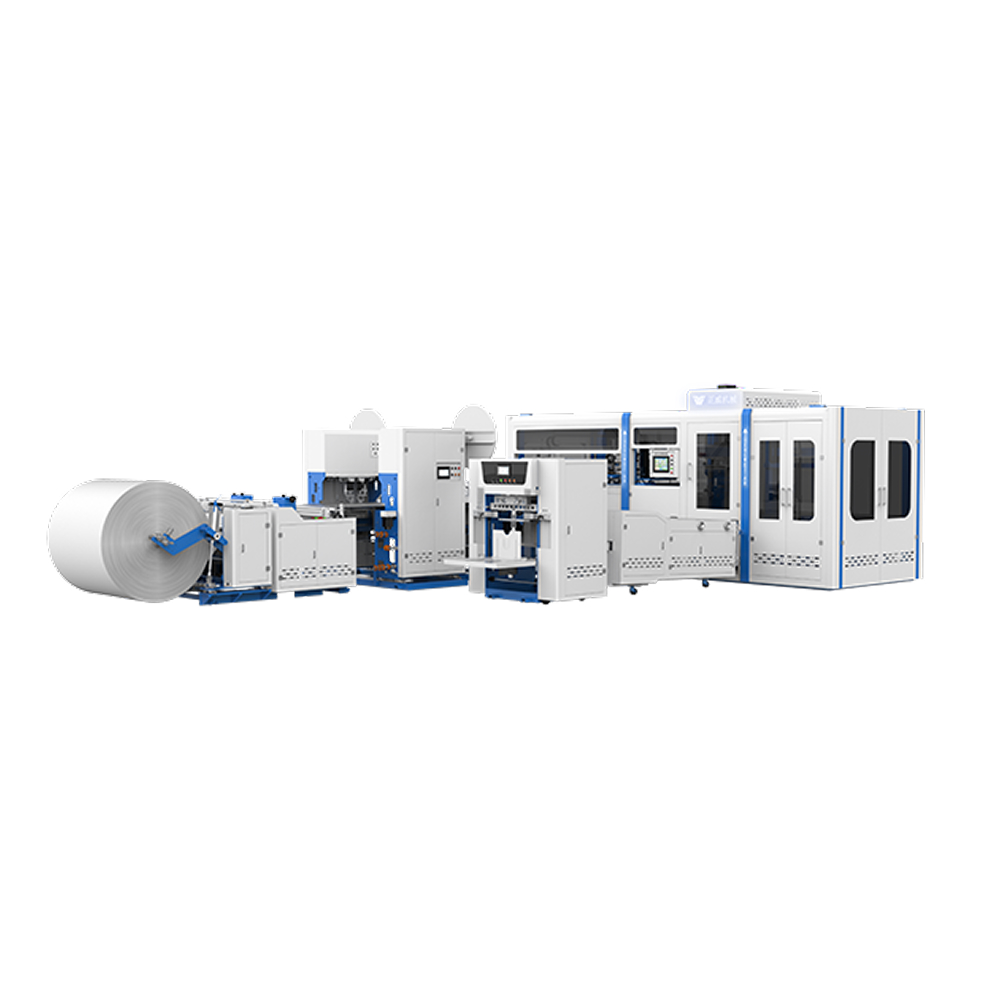

ZHENGWEI ZW-A8 is a fully-automatic non-woven box bag making machine. Built on four invention patents and two utility patents, it forms three-dimensional non-woven box bags — delivering high-speed and stable production at 60–90 pcs/min.
- Production Speed: 60–90 pcs/min
- Bag Size Range: Width 110–550 mm · Gusset 70–230 mm ·Height 150–450 mm
- Material: Non-woven (laminating) / PP, 55–140 g
- Control System: Dual alignment system with eye tracking function Total Power: 60 KW (Average 15-20 KW) · Power Supply: 380 V 3P 50/60HZ

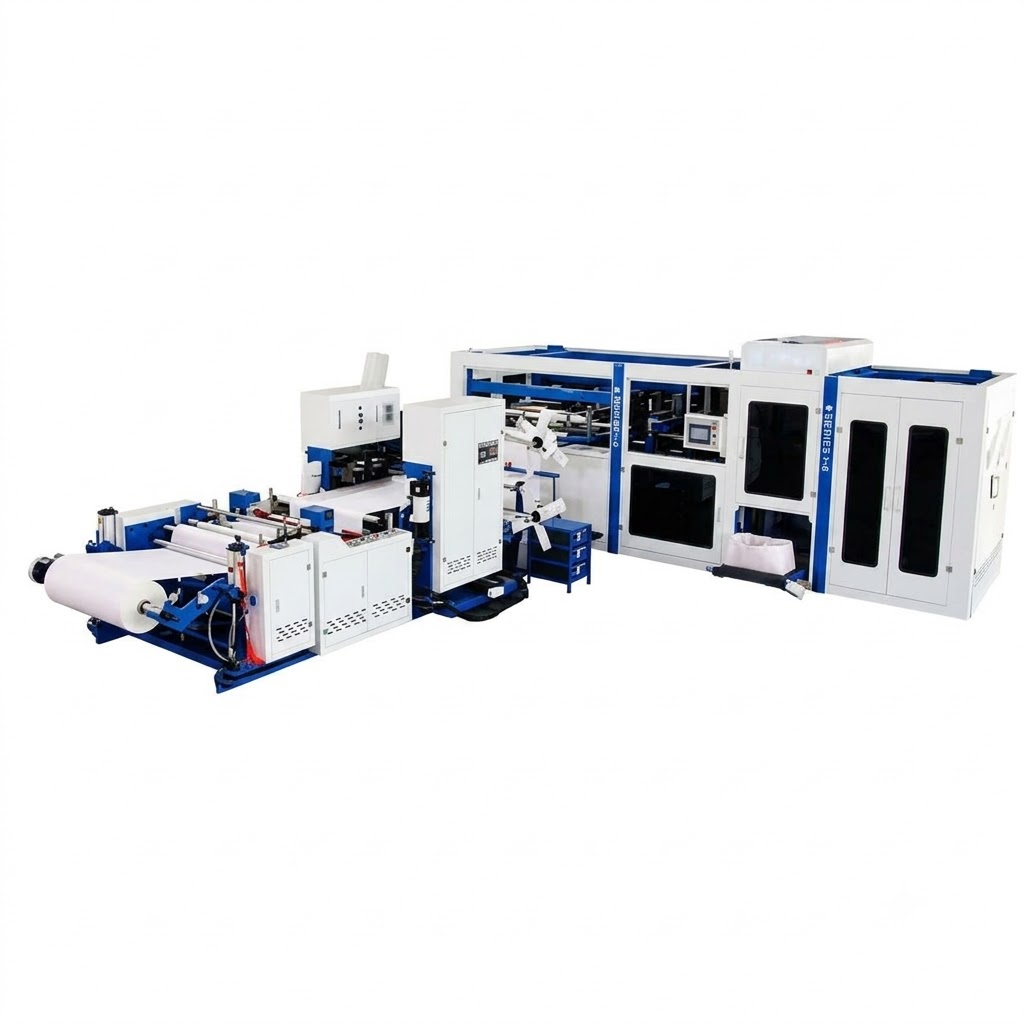

HENGWEI ZW-A8-S350 is a fully-automatic non-woven bag making machine designed for thermal-insulated three-dimensional bags.
- Production Speed: 20–80 pcs/min (depends on bag size)
- Bag Size Range: Width 110–550 mm · Side Width 80–350 mm · Height 200–500 mm
- Material: PP non-woven, BOPP-laminated non-woven, aluminized film-laminated non-woven, 100–140 gsm (roll-fed)
- Control System: Panasonic PLC with touchscreen control, servo-driven synchronous mould operation, EPC edge control
- Total Power: ~80 KW · Power Supply: 380 V · Installation Size: 9600×7300×2700 mm
ZHENGWEI ZW-A11 is a fully-automatic crease-free sheet-feeding paper bag making machine. Built on six core patents and full-servo bus control, it forms square-bottom rope-handle bags with inline quality inspection — delivering clean, waistline-free bags at 40–45 pcs/min.
- Production Speed: 40–45 pcs/min
- Bag Size Range: Width 200–540 mm · Gusset 70–200 mm · Height 200–420 mm
- Material: White cardboard / kraft / gold & silver card, 180–300 gsm (sheet-fed)
- Control System: Full-servo bus control with inline rope quality inspection
- Total Power: 40 KW · Power Supply: 380 V

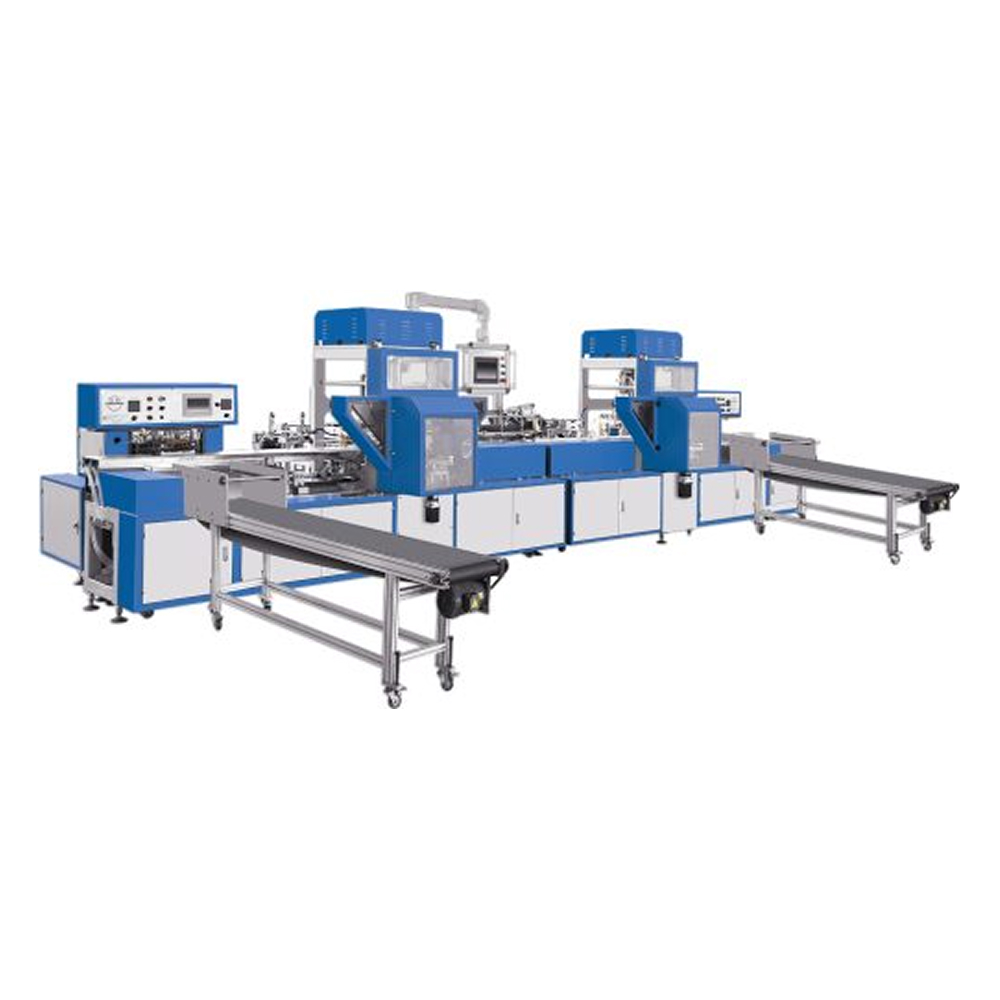

ZHENGWEI ZW-S2 is a compact, high-efficiency gusseted paper bag making machine designed for flexible production of food-grade and retail carrier bags. With servo-driven control and a space-saving footprint, it delivers reliable output at 15–20 pcs/min, making it an ideal choice for small-to-medium batch manufacturing.
- Production Speed: 15–20 pcs/min
- Bag Size Range: Width 254–406 mm · Gusset 80–200 mm · Height 254–460 mm
- Material: PO / PE film, 7–15dm (0.07–0.15 mm) — roll-fed
- Control System: Servo-driven tension control with precise heat-sealing
- Total Power: 30 kW (average) · Power Supply: 380V 3P 50/60HZ
