ZW-LDBJ Horizontal Baler for Non-Woven Fabrics

ZHENGWEI ZW-A11 is a fully-automatic crease-free sheet-feeding paper bag making machine. Built on six core patents and full-servo bus control, it forms square-bottom rope-handle bags with inline quality inspection — delivering clean, waistline-free bags at 40–45 pcs/min.

Production Speed: 40–45 pcs/min
Bag Size Range: Width 200–540 mm · Gusset 70–200 mm · Height 200–420 mm
Material: White cardboard / kraft / gold & silver card, 180–300 gsm (sheet-fed)
Control System: Full-servo bus control with inline rope quality inspection
Total Power: 40 KW · Power Supply: 380 V

Advantages & Features

Hydraulic Compression with PLC Automatic Control — Adopts Huichuan PLC system for fully automated pressing cycles, integrating left/right pressure belt device, push-forward device, and optical eye detection for precise, repeatable bale formation.
Multi-Stage Optical Eye Positioning System — Four detection photocells monitor compression stages in real time: right-side retraction in-position, compression in-position, and post-compression retraction distance. The push-bag origin switch ensures accurate bale ejection, enabling consistent bale dimensions across production runs.
Adjustable Compression Fixture — Fixture opening accommodates bag lengths from 500mm to 800mm, widths from 300mm to 550mm, and heights up to 1200mm. The minimum reduced fixture size is 500mm, with a single compression stroke of 400mm (200mm per side), providing flexibility for varying non-woven bag sizes.
Interchangeable Intermediate Plate Design — Selectable large or small intermediate plates based on product width (threshold: 720mm inner width), optimizing compression efficiency and preventing over-compression or under-compression for different bag volumes.
User-Friendly Commissioning Procedure — Step-by-step setup including 220V power connection, oil pump activation, swing arm adjustment, optical eye calibration, and paw height setting. Safety interlock ensures green indicator light before production, simplifying operator training and reducing setup errors.
Compact Mobile Design with Easy Maintenance — Equipped with universal wheels for convenient repositioning. Maintenance features include regular guide rail cleaning, grease application, filter cleaning, and hydraulic oil maintenance (anti-wear oil No. 46 or 68, maintain at 2/3 capacity, oil level ~70mm), ensuring long-term reliability.
Efficient Bale Ejection Workflow — Operates via foot switch: load bags → compress → position cart → second foot switch activates forward push device (stroke 1200mm) to eject complete bale, streamlining the baling process for continuous production.

Technical Parameters

Parameter	Specification
Model	ZW-LDBJ
Applicable Material	Non-woven fabrics, woven bags
Bale Size (Length)	500–800 mm
Bale Size (Width)	300–550 mm
Bale Size (Height)	Up to 1200 mm
Fixture Max Opening	1200 mm
Fixture Min Reduced Size	500 mm
Compression Amount	400 mm per cycle (200 mm per side)
Fixture Compression Pressure	800 KG
Side Push Rod Stroke	350 mm
Front Putter Stroke	1200 mm
Power Supply	220 V
Total Power	2 KW
Machine Weight	1000 KG

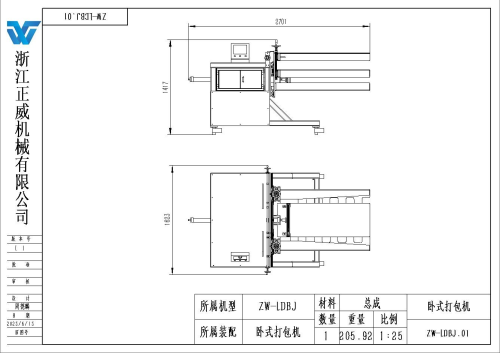

Installation Size (L×W×H)	2750 × 1650 × 1450 mm

Application Scenarios

Retail & Shopping Bags — Apparel, footwear, and fashion brand carrier bags
Food & Beverage Packaging — Bakery, takeaway, restaurant, and beverage bags
Wine & Gift Packaging — Premium boxes and gift bags using gold/silver card stock
Daily Goods & Hardware — Department store, stationery, and hardware product bags
Eco-Friendly Bag Production — Plastic-free, recyclable paper carrier bags for green packaging initiatives
